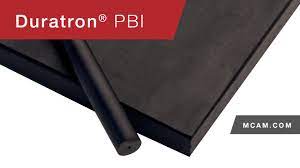

Duratron Pbi, nhựa PBI, nhựa Celazole pbi, U60 Pbi, CU60 Pbi

Duratron® CU60 PBI is the highest performance engineering thermoplastic available today. It offers the highest heat resistance and mechanical property retention over 400°F of any unfilled plastic (see Figures 26 & 27). It has better wear resistance and load carrying capabilities at extreme temperatures than any other reinforced or unreinforced engineering plastic.

As an unreinforced material, Duratron CU60 PBI is very "clean" in terms of ionic impurity and it does not outgas (except water). These characteristics make this material very attractive to semiconductor manufacturers for vacuum chamber applications. Duratron CU60 PBI has excellent ultrasonic transparency which makes it an ideal choice for parts such as probe tip lenses in ultrasonic measuring equipment.

Duratron CU60 PBI is also an excellent thermal insulator. Other plastics in melt do not stick to Duratron CU60 PBI. These characteristics make it ideal for contact seals and insulator bushings in plastic production and molding equipment.

Product Overview

• Highest mechanical properties of any plastic above 400°F (204°C)
• Highest heat deflection temperature 800°F (427°C), with a continuous service capability of 750°F (399°C) in inert environments, or 650°F (343°C) in air with short term exposure potential to 1,000°F (538°C)
• Lowest coefficient of thermal expansion and highest compressive strength of all unfilled plastics

Main Application:

High heat Insulator Bushings : used in hot runner plastic injection molds made of Duratron CU60 PBI allow the plastic being molded to remain in melt as the part "freezes" in the cool mold. Bushings last longer and ease clean up since hot molten plastics do not stick to Duratron CU60 PBI. (Prior materials: Vespel® PI, Ceramic)

Electrical connectors: For an extra margin of safety, an aircraft engine manufacturer replaced connectors exposed to temperatures over 400°F (205°C) with Duratron CU60 PBI. (Prior material: Vespel® PI)

Ball valve seats: Seats manufactured from Duratron CU60 PBI excel in high temperature fluid handling service. (Prior material: Metal)

Clamp Rings: Parts machined from Duratron CU60 PBI for gas plasma etching equipment last longer than polyimide parts due to reduced high energy erosion rates. Because they need replacement less often, valuable production "uptime" is gained. (Prior material: Vespel® PI)
